EL817S1(C)(TU)-F

Non-returnable
₹5.63
Optoisolator Transistor Output 5000Vrms 1 Channel 4- SMD, Everlight Electronics Co Ltd
Note

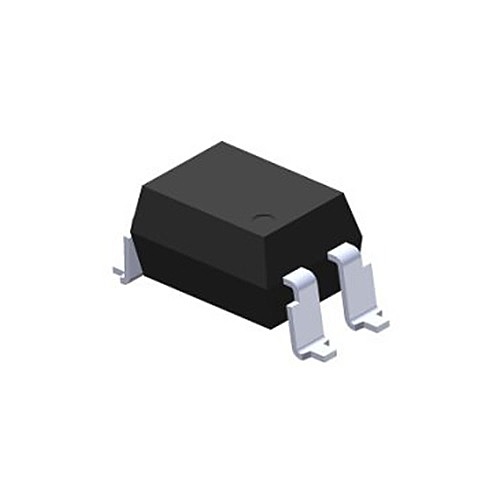

** This image is for representational purposes only **
Info
For B2B orders, contact us on sales@blizzcartz.com
Quantity
Add to Cart
Product Details
Manufacturer Part Number: EL817S1(C)(TU)-F
Manufacturer: Everlight Electronics Co Ltd
Voltage - Isolation: 5000Vrms
Current Transfer Ratio (Min): 200% @ 5mA
Current Transfer Ratio (Max): 400% @ 5mA
Number of Channels: 1
Rise / Fall Time (Typ): 18µs, 18µs (Max)
Input Type: DC
Output Type:Transistor
Voltage - Output (Max): 80V
Voltage - Forward (Vf) (Typ): 1.2V
Current - Output / Channel: 50mA
Current - DC Forward (If) (Max): 60 mA
Vce Saturation (Max): 200mV
Operating Temperature:-55°C ~ 110°C
Mounting Type: Surface Mount
Package / Case: 4-SMD
