BM04B-GHS-TBT (LF)(SN)
Non-returnable
₹49.00
Out of stock

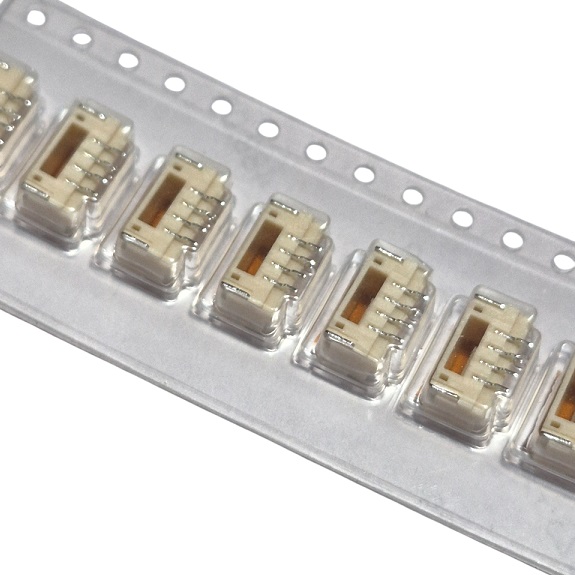

Connector Header Surface Mount 4 position 0.049" (1.25 mm), JST
Product Details
| Manufacturer Part Number: | BM04B-GHS-TBT (LF)(SN) |
| Manufacturer: | JST |
| Connector Systems: | Wire-to-Board |
| Number of Rows: | 1 |
| Number of Contacts: | 4 |
| Pitch Spacing: | 1.25mm (0.049") |
| Connector Shroud: | Shrouded |
| Contact Plating: | Tin Plated |
| Contact Material: | Phosphor Bronze |
| Voltage Rating: | 50V |
| Current Rating (Amps): | 1A |
| Contact resistance: | 30Ω Max |
| Insulation resistance: | 100MΩ Min |
| Operating temperature: | -25°C ~ 85°C |
| Connector Type: | PCB Header |
| Mounting Type: | Surface Mount |
