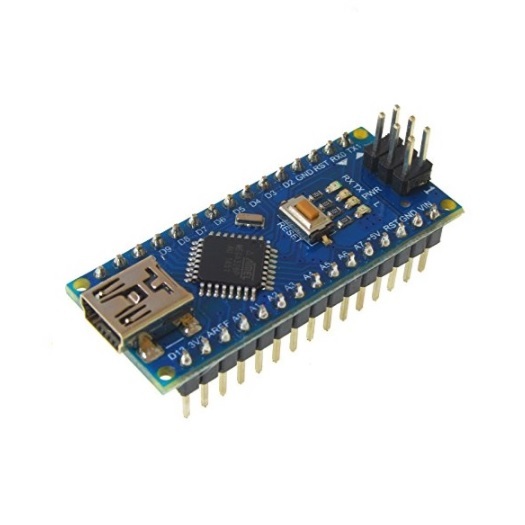

Arduino Nano CH340 without USB cable (Soldered)
Micro controller: | ATMega328p-AU |
Input Voltage: | 7 V to 12 V |
Operating Voltage: | 5 V |
Flash Memory: | 32 KB (out of which 2 KB used by bootloader) |
SRAM: | 2 KB |
EEPROM: | 1 KB |
Clock Speed: | 16 Mhz |
Analog Input Pins: | 8 |
Digital I/O pins: | 22 |
PWM Output pins: | 6 |
Max Current Per I/O pins: | 40 mA |
Power Consumption: | 1W |
Color: | Blue |
Additional Details:
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Support USB download and Power
Support for external 5V ~ 12V DC power supply
It Supports power supply by a 9V battery
Support ISP download
Automatic reset during program download.
Power OK blue LED on the bottom.
Green (TX), red (RX), and orange (L) LED.
+5V to AREF jumper.
Auto-sensing/switching power input.
Small mini-B USB for programming and serial monitor.
ICSP header for direct program download.
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.
