TS35CA
Non-returnable
₹7.65

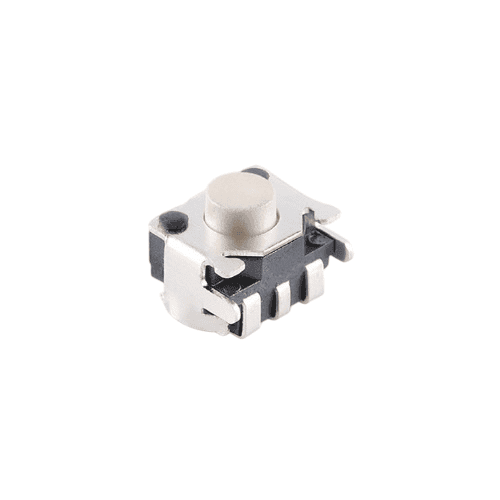

Tactile Switch 3pin SPST Round Button SMD 4.45x3.4x3.3 mm, SHOU HAN
Product Details
| Manufacturer Part Number: | TS35CA |
| Manufacturer: | SHOU HAN |
| Number of Pins: | 3 |
| Current Rating: | 50 mA |
| Orientation: | Right Angle |
| Throw Configuration: | SPST |
| Voltage Rating: | 12 V |
| Size (LxWxH): | 4.45mm x 3.4mm x 3.3mm |
| Operating Force: | 250 gf |
| Action Type: | Momentary |
| Contact Resistance: | < 100 mOhm |
| Insulation Resistance: | > 50 mOhm (100V DC) |
| Switching Life: | 100000 Cycles |
| Operating Temperature: | -20°C ~ 70°C |
| Mounting Type: | Surface Mount |
