22-05-1082
Non-returnable
₹169.50
Out of stock

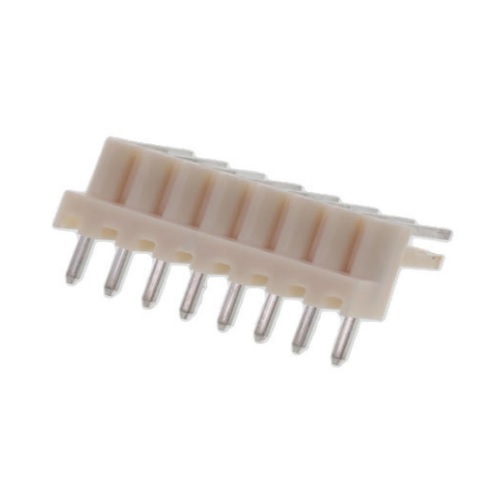

Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm), Molex
Product Details
| Manufacturer Part Number: | 22-05-1082 |
| Manufacturer: | Molex |
| Component Type: | PCB Header |
| Type: | Locking |
| Number of Positions: | 8 Position |
| Pitch: | 2.5 mm (0.098 in) |
| Number of Rows: | 1 Row |
| Termination Style: | Solder Pin |
| Mounting Angle: | Right Angle |
| Contact Gender: | Pin (Male) |
| Contact Plating: | Tin |
| Mating Post Length: | 7.5 mm (0.295 in) |
| Termination Post Length: | 3.4 mm (0.134 in) |
| Series: | 5046 |
| Tradename: | Mini-Latch/KK |
| Contact Material: | Tin |
| Current Rating: | 3 A |
| Voltage Rating: | 250 V |
| Flammability Rating: | UL 94 V-0 |
| Housing Material: | Polyamide (PA) |
| Application: | Signal, Wire-to-Board |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Style: | Through Hole |
