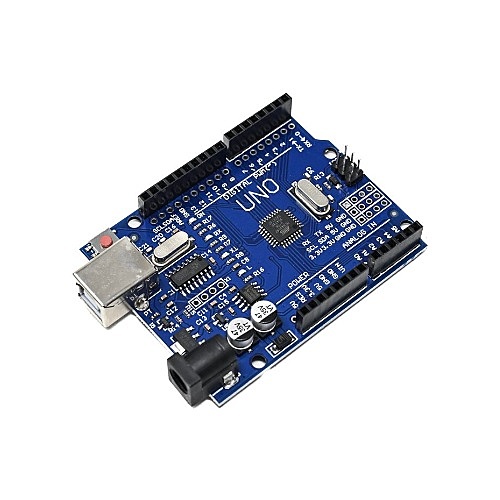

Uno R3 CH340G ATMega328P Development Board

Non-returnable
₹194.92
Compatible with Arduino Uno R3 CH340G ATMega328P Development Board
Note
** This image is for representational purposes only **
Info
For B2B orders, contact us on sales@blizzcartz.com
Quantity
Add to Cart
Product Details
Board Type: Uno
Microcontroller: ATmega328 SMD
Operating Voltage: 5V
Supply Voltage recommended: 7 - 12V DC
Analog Input Pins: 6
Digital I/O Pins: 14 (of which 6 provide PWM output)
PWM Digital I/O Pins: 6
DC Current for 3.3V Pin: 50mA
DC Current per I/O Pin: 40mA
Clock Speed: 16 MHz
SRAM: 2
EEPROM: 1 KB (ATmega328)
Flash Memory: 32 KB
Power Supply Option: DC Jack or USB
On Board LED: On/Off, L (PIN 13), TX, RX
Operating Temperature: -40°C to 90°C
