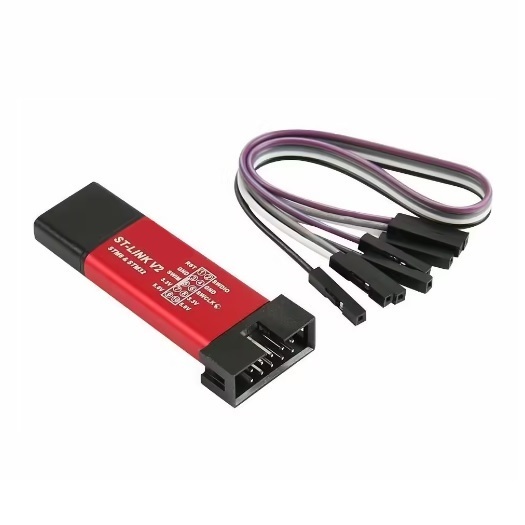

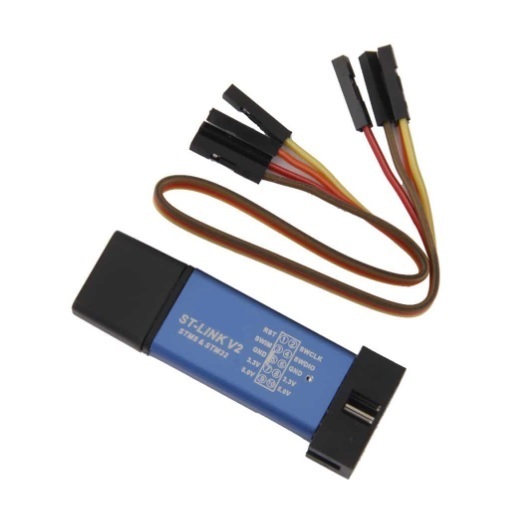

ST-LINK/V2 Mini
Non-returnable
₹150.00
In Circuit Debugger /Programmer, For STM8 & STM32, SWIM and JTAG Serial Wire Debugging Interfaces
Product Details
| Type: | Debugger, Programmer (In-Circuit/In-System) |
| For Use With/Related Products: | STM8, STM32 |
Features:
- PCB installed inside of aluminum alloy U disk shell, portable, safe and reliable!
- Interface definition directly marked on the shell, clear, convenient and practical!
- 5V, 3.3V offers at the same time, allowing you to program your target board with both 5V and 3.3V
- Shell characters using laser engraving, never fade off! Permanent clarity!
- 500MA internal resettable fuse, complete protection of your expensive computer motherboard!
- Red and blue color LED indicator, allowing you to always observe ST-LINK V2 working condition!
- With 4 DuPont line, so you can easily respond to different target board line order!
- Use anti-static bag packaging.
- Direct firmware update feature supported (DFU)
- Status LED which blinks during communication with the PC
- Operating temperature 0 to 50°C
- SWIM specific features:
- SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
- 1.65 V to 5.5 V application voltage supported on SWIM interface
- SWIM low-speed and high-speed modes supported
- SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
- SWIM cable for connection to the application
Supports For ST-LINK V2:
- ST-LINK Utility 2.0 and above.
- STVD 4.2.1 and above.
- STVP 3.2.3 and above.
- IAR EWARM V6.20 and above.
- IAR EWSTM8 V1.30 and above.
- KEIL RVMDK V4.21 and above.
You can download the Drivers by clicking here
Note: The product is available in Multiple colors and design Will be shipped randomly.
