FTX32.768K9SM3-20C
Non-returnable
₹25.00

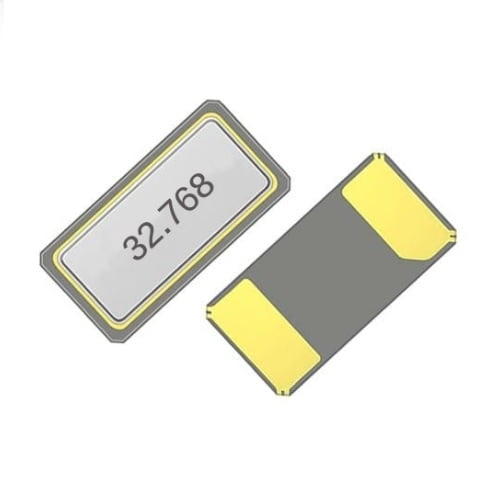

32.768KHz Crystal 3.2x1.5 2pin smd 9pf, 20ppm, -30~+80C, Fronter
Product Details
| Manufacturer Part Number: | FTX32.768K9SM3-20C |
| Manufacturer: | Fronter |
| Package: | SM3 |
| Frequency: | 32.768KHz |
| Loading Capacitance: | 12.5pF Std. 7pF available |
| Drive Level: | 1.0μW Max |
| Frequency Tolerance: | ±20ppm（at 25℃） |
| Equivalent Resistance: | 70KΩ Max |
| Temperature coefficient: | -0.04×10-6 /℃2 max |
| Operating Temp. Range: | -30～+80℃ |
| Storage Temp. Range: | -55～+125℃ |
| Aging（25℃，First Year: | ±3ppm max |
| Size: | 3.2 x 1.5 mm |
