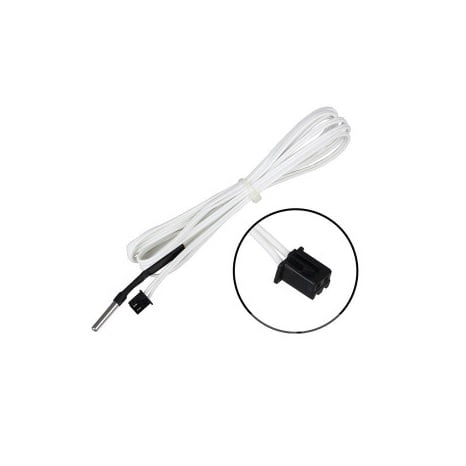

High Temperature NTC 100K Thermistor with 1 Meter Cable
Non-returnable
₹53.00
High Temperature NTC 100K Thermistor with 1 Meter Cable
Product Details
This is Thermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer RepRap. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.
Positive thermal coefficient (PTC) will increase in resistance with an increase in temperature, negative ones (NTC) will decrease. But the formula in practice is not linear, so sometimes an accurate table of measurements is better than the linear formula. These measurements can usually be found in the datasheet that accompanies the thermistor.
| Temperature range of use: | -30 ℃ ~ +350 ℃ |
| Dissipation power factor: | ≥5 mW / ℃ (static in the air) |
| Sensor Diameter: | 3 mm |
| Cable Length: | 1 meter |
| Max power rating: | 45 mW |
| Hot time constant : | ≤7 s(in the air) |
| Temperature coefficient of resistance : | -2 ~ 5% / ℃ |
