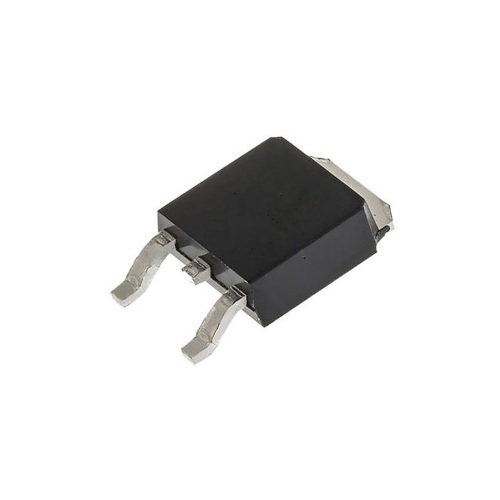

IRFR5410TRPBF
Non-returnable
₹50.98
P-Channel 100 V 13A (Tc) 66W (Tc) Surface Mount TO-252AA (DPAK), Infineon Technologies
Product Details
| Manufacturer Part Number: | IRFR5410TRPBF |
| Manufacturer: | Infineon Technologies |
| Drain to Source Voltage (Vdss): | 100 V |
| Current - Continuous Drain (Id) @ 25°C: | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Rds On (Max) @ Id, Vgs: | 205mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 58 nC @ 10 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 760 pF @ 25 V |
| Power Dissipation (Max): | 66W (Tc) |
| Operating Temperature: | -55°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-252AA (DPAK) |
