T2N7002AK,LM(B
Non-returnable
₹1.50
Out of stock

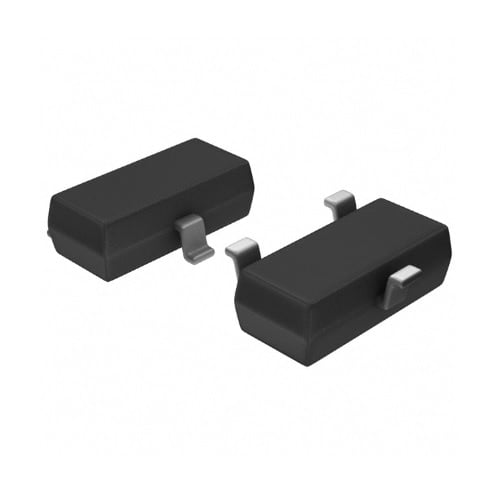

N-Channel 60 V 200mA (Ta) 320mW (Ta) Surface Mount SOT-23-3, Toshiba Semiconductor
Product Details
| Manufacturer Part Number: | T2N7002AK,LM(B |
| Manufacturer: | Toshiba Semiconductor |
| Drain to Source Voltage (Vdss): | 60 V |
| Current - Continuous Drain (Id) @ 25°C: | 200mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 3.9Ohm @ 100mA, 10V |
| Vgs(th) (Max) @ Id: | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 0.35 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds: | 17 pF @ 10 V |
| Power Dissipation (Max): | 320mW |
| Operating Temperature: | 150°C |
| Mounting Type: | Surface Mount |
| Package: | SOT-23-3 |
