B2P-VH
Non-returnable
₹14.00 (Excluding GST)
Out of stock

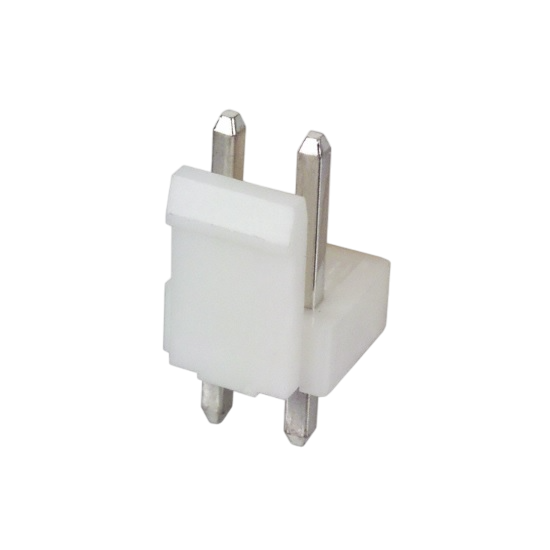

Connector Header Through Hole 2 position 0.156" (3.96 mm), JST
Product Details
| Manufacturer Part Number: | B2P-VH |
| Manufacturer: | JST |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.156" (3.96mm) |
| Number of Positions: | 2 |
| Number of Rows: | 1 |
| Termination: | Solder |
| Material Flammability Rating: | UL94 V-0 |
| Current Rating (Amps): | 10A |
| Voltage Rating: | 250V |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights: | 16.5mm |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
