XY128-2
Non-returnable
₹6.10 (Excluding GST)
In Stock : 20

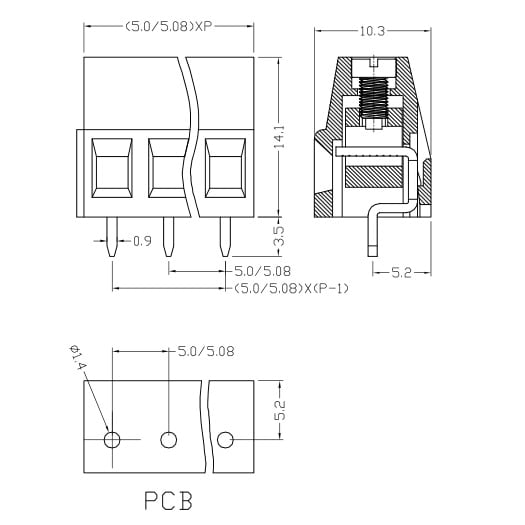

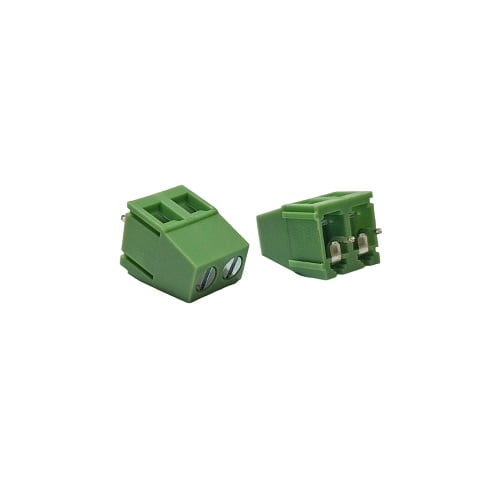

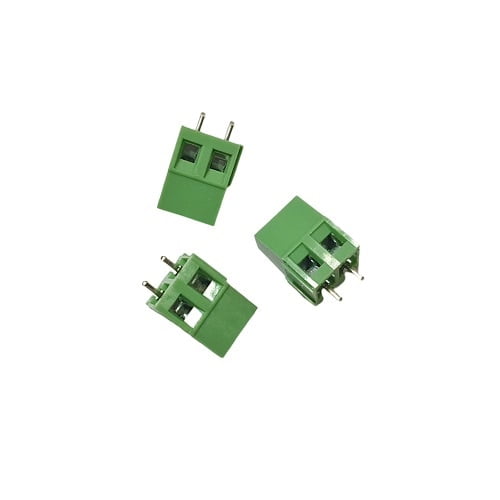

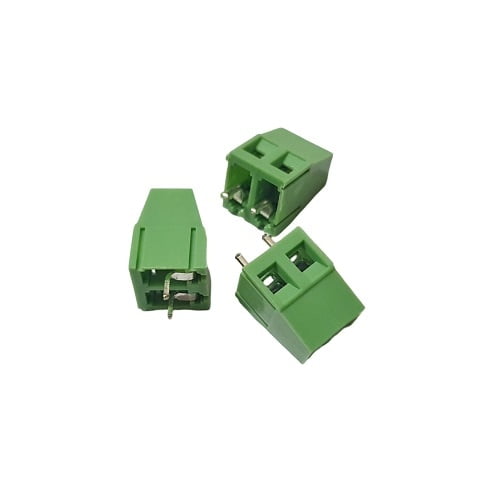

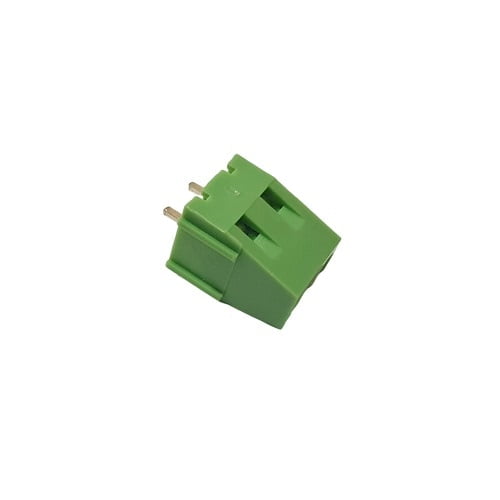

PCB mount terminal block 5.0 mm pitch, 15A, XINYA
Product Details
| Manufacturer Part Number: | XY128-2 |
| Manufacturer: | Xinya |
| Pitch: | 5.00mm |
| Current Rating: | 10A @ 250V |
| Housing: | PA66 (UL 94V-0) |
| Screw: | Steel |
| Pin Header: | Brass (Tin Plated) |
| Operating temperature: | -40°C to +105°C |
| Max Withstand Voltage: | 2000VAC / 60s |
| Supported Wire Range: | 24-12 AWG or up to 2.5mm² |
| Wave Soldering: | 260°C/5s |
| Hand Soldering: | Soldering Iron 350°C/10s |
