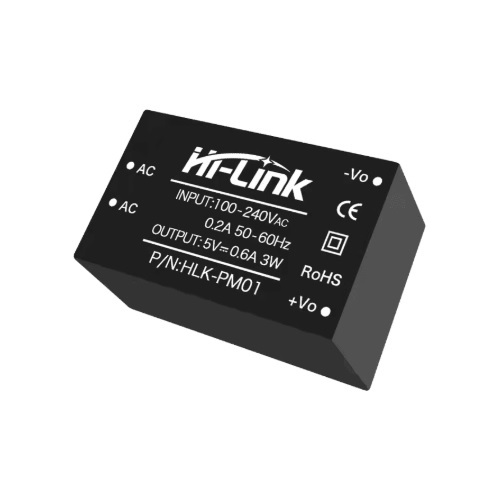

HLK-PM01 5V/3W Switch Power Supply Module
Manufacturer Part Number: | HLK-PM01 |
Manufacturer: | Hi-Link |
Power Rating: | 3W |
Output Voltage: | 5V |
AC Input Voltage: | 90 ~ 264 VAC |
Long-term reliability: | MTBF 100000 hours |
Low level output voltage: | +5V±0.1 |
Opt. Relative Humidity(RH): | 5 to 95% |
Max Input Current: | 0.2A |
Input Surge Current: | 10A |
Voltage regulation Accuracy: | ±0.2 % |
Load Regulation: | ±0.5 % |
Peak Output Current: | 1000mA |
Continuous Output Current: | 600mA |
Efficiency at 110V AC: | 69% (full load) |
Efficiency at 220V AC: | 70% (full load) |
Color: | Black |
Operating Temperature: | -20°C ~ 60°C |
Dimensions (L x W x H): | 33mm x 19mm x 15mm |
Features:
Meet UL, CE requirements,
Ultra-thin, ultra-small
All voltage input (AC: 90 ~ 264V)
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
The product is designed to meet the requirements of EMC and Safety Test
Low power consumption, environmental protection, no-load loss <0.1W
Environmental conditions:
Technical indicators: Single bit
Working temperature: -20-60 +degree
Storage temperature: +80-40 -degree
Relative humidity: 5-95%
The cooling way: Natural cooling
The atmospheric pressure: 80-106Kpa
The altitude: 2000M or less.
