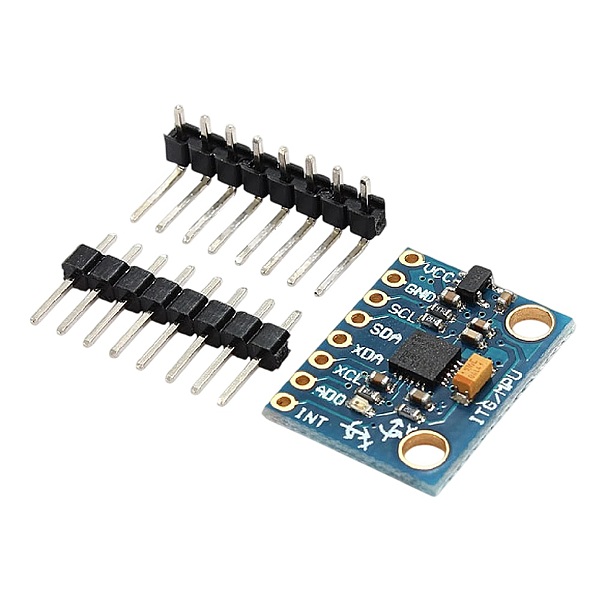

MPU-6050 Triple-Axis Accelerometer & Gyroscope Module

Name: MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
SKU: 1099SEN-MPU-6050-MODULE
Price: 149.98 INR
Availability: OutOfStock

Non-returnable

₹149.98

Out of stock

Note

** This image is for representational purposes only **

Info

For B2B orders, contact us on sales@blizzcartz.com

Add to Cart

Product Details

Model:	Accelerometer Sensor, Gyroscope Sensor
Operating Voltage:	3V to 5V DC
Driver IC:	MPU-6050
Communication Mode:	I²C protocol
Gyroscope:	Range: Â± 250, 500, 1000, 2000Â°/s
Acceleration range:	Â± 2 Â± 4 Â± 8 Â± 16(g)
Length:	20mm
Width:	16mm

Features:

Chip built-in 16bit AD converter, 16-bit data output.
Digital-output temperature sensor.
I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
Selectable Solder Jumpers on CLK, FSYNC, and AD0.
Digital Motion Processing™ engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
Embedded algorithms for run-time bias and compass calibration. No user intervention required.
