PJ-035C
Non-returnable
₹40.00

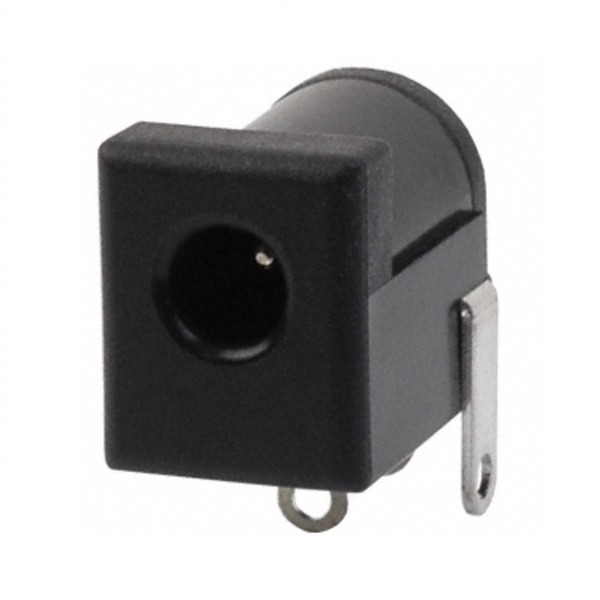

Power Barrel Connector Jack 1.00mm ID (0.039"), 3.50mm OD (0.138") Through Hole, Right Angle, Same Sky (Formerly CUI Devices)
Product Details
| Manufacturer Part Number: | PJ-035C |
| Manufacturer: | Same Sky (Formerly CUI Devices) |
| Connector Type: | Jack |
| Gender: | Male |
| Industry Recognized Mating Diameter: | 1.00mm ID (0.039"), 3.50mm OD (0.138") |
| Actual Diameter: | 0.039" (1.00mm ID), 0.150" (3.80mm OD) |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Internal Switch(s): | Single Switch, Normally Closed |
| Mounting Type: | Through Hole, Right Angle |
| Voltage - Rated: | 24VDC |
| Current Rating (Amps): | 2A |
| Mating Length/Depth: | 0.374" (9.50mm) |
| Material Flammability Rating: | UL94 V-0 |
| Operating Temperature: | -25°C ~ 85°C |
| Contact Material - Plating: | Tin |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Contact Material: | Brass, Bronze |
| Body Color: | Black |
