ESDA14V2SC5
Non-returnable
₹30.00

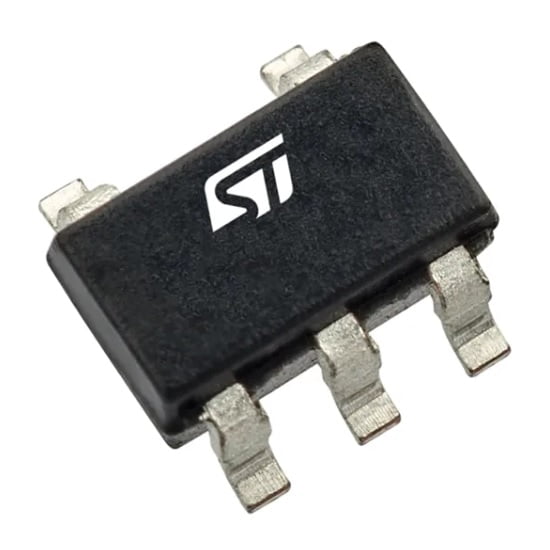

Clamp Ipp Tvs Diode Surface Mount SOT-23-5, STMicroelectronics
Product Details
| Manufacturer Part Number: | ESDA14V2SC5 |
| Manufacturer: | STMicroelectronics |
| Voltage - Reverse Standoff: | 12V |
| Voltage - Breakdown (Min): | 14.2V |
| Power - Peak Pulse: | 300W |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: SC-74A, SOT-753 | SC-74A, SOT-753 |
Key features
4 unidirectional ESD protection
400 W peak pulse power (8/20 μs)
Benefits
High ESD protection level: up to 30 kV
High integration
Suitable for high density boards
Complies with the following standards
IEC 61000-4-2 level exceed level 4:
30 kV (air discharge)
30 kV (contact discharge)
MIL STD 883E- Method 3015-7: class3B
human body model
