BRL1608T6R8M
Non-returnable
₹22.00

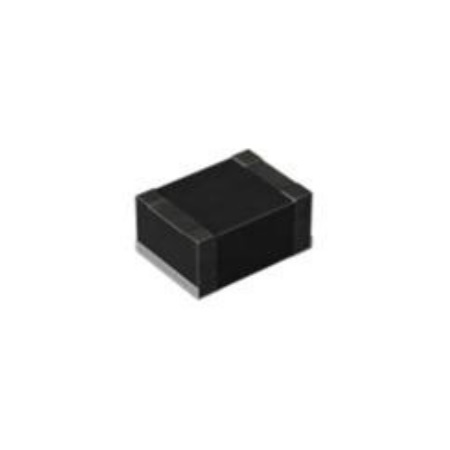

6.8 μH Unshielded Drum Core, Wirewound Inductor 250 mA 2.132Ohm Max 0603 (1608 Metric), Taiyo Yuden
Product Details
| Manufacturer Part Number: | BRL1608T6R8M |
| Manufacturer: | Taiyo Yuden |
| Inductance: | 6.8uH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 250 mA |
| Current - Saturation (Isat): | 200mA |
| DC Resistance (DCR): | 2.132Ohm Max |
| Frequency - Self Resonant: | 100MHz |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 1 MHz |
| Mounting Type: | Surface Mount |
| Package / Case: | 0603 (1608 Metric) |
