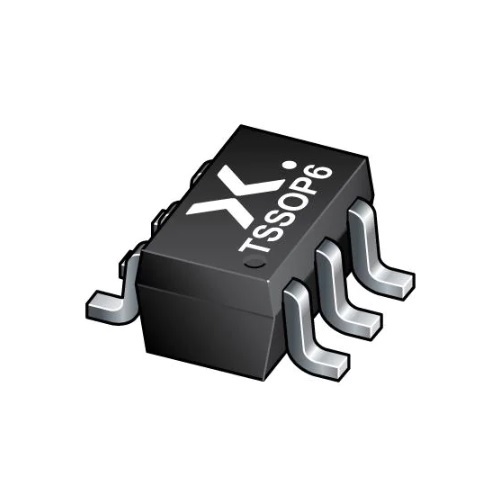

PESD5V0L5UY,115
Non-returnable
₹8.98
12V Clamp 2.5A (8/20μs) Ipp Tvs 16pF @ 1MHz Diode Surface Mount 6-TSSOP, Nexperia
Product Details
| Manufacturer Part Number: | PESD5V0L5UY,115 |
| Manufacturer: | Nexperia USA Inc. |
| Unidirectional Channels: | 5 |
| Voltage - Reverse Standoff (Typ): | 5V (Max) |
| Voltage - Breakdown (Min): | 6.4V |
| Voltage - Clamping (Max) @ Ipp: | 12V |
| Current - Peak Pulse (10/1000µs): | 2.5A (8/20µs) |
| Power - Peak Pulse: | 25W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 16pF @ 1MHz |
| Operating Temperature: | -65°C ~ 150°C |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-TSSOP, SC-88, SOT-363 |
