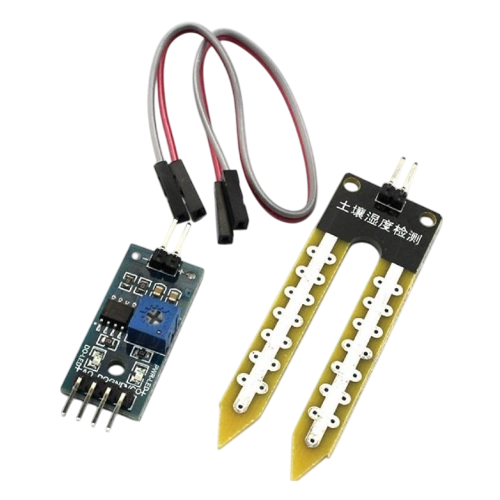

Soil Moisture Sensor Module
Non-returnable
₹32.00
Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer
Product Details
| Operating Voltage: | 3.3V to 5V |
| Output Modes: | Digital, Analog |
| PCB Size: | 3cm x 1.6cm |
| Comparator Chip: | LM393 |
| Interface: | 4-wire (VCC, GND, DO, AO) |
| Current: | <20mA |
| Dimensions: | 30mm x 16mm |
| Weight: | 5g Approx. |
| Detection Range: | Adjustable |
Features:
Dual output mode, analog output more accurate
A fixed bolt hole for easy installation
With power indicator (Red) and digital switching output indicator (Green)
Having LM393 comparator chip, stable
Wiring Connection:
VCC: 3.3V-5V
GND: GND
DO: Digital output interface(0 and 1)
AO: Analog output interface
