PESD1CAN,215
Non-returnable
₹8.98

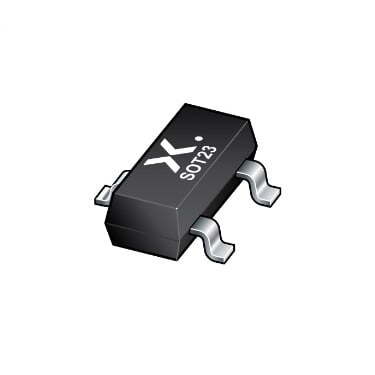

70V Clamp 3A (8/20μs) Ipp Tvs Diode Surface Mount TO- 236AB, Nexperia USA Inc.
Product Details
| Manufacturer Part Number: | PESD1CAN,215 |
| Manufacturer: | Nexperia USA Inc. |
| Voltage - Reverse Standoff (Typ): | 24V (Max) |
| Voltage - Breakdown (Min): | 25.4V |
| Voltage - Clamping (Max) @ Ipp: | 70V |
| Current - Peak Pulse (10/1000µs): | 3A (8/20µs) |
| Power - Peak Pulse: | 200W |
| Power Line Protection: | No |
| Applications: | CAN |
| Capacitance @ Frequency: | 11pF @ 1MHz |
| Operating Temperature: | -65°C ~ 150°C |
| Grade: | Automotive |
| Qualification: | AEC-Q101 |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
