SMCJ15A
Non-returnable
₹7.65

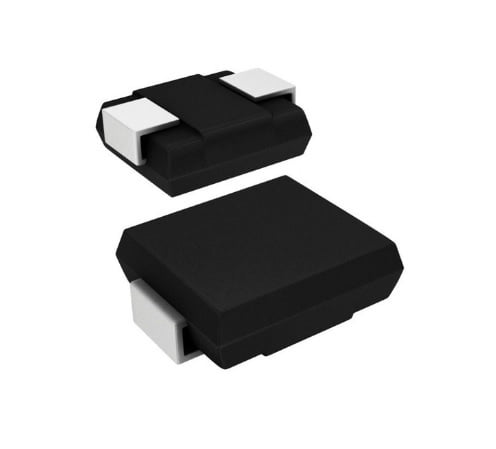

15V 1500W ESD Suppressor TVS Diode 2Pin SMC DO- 214AB, JD
Product Details
| Manufacturer Part Number: | SMCJ15A |
| Manufacturer: | JD |
| Number of Pins: | 2 |
| Breakdown Voltage: | 16.7 V |
| Clamping Voltage: | 24.4 V |
| Composition: | Zener |
| Element Configuration: | Single |
| Max Breakdown Voltage: | 18.5 V |
| Max Power Dissipation: | 1.5 kW |
| Max Reverse Leakage Current: | 1 uA |
| Max Surge Current: | 61.5 A |
| Min Breakdown Voltage: | 16.7 V |
| Number of Channels: | 1 |
| Number of Elements: | 1 |
| Operating Supply Voltage: | 15 V |
| Peak Pulse Current: | 61.5 A |
| Peak Pulse Power: | 1.5 kW |
| Reverse Breakdown Voltage: | 16.7 V |
| Reverse Standoff Voltage: | 15 V |
| Voltage Rating (DC): | 15 V |
| Operating Temperature: | -65°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AB, SMC |
