EC200UEUAA-N05-SGNSA
Non-returnable
₹1,000.00

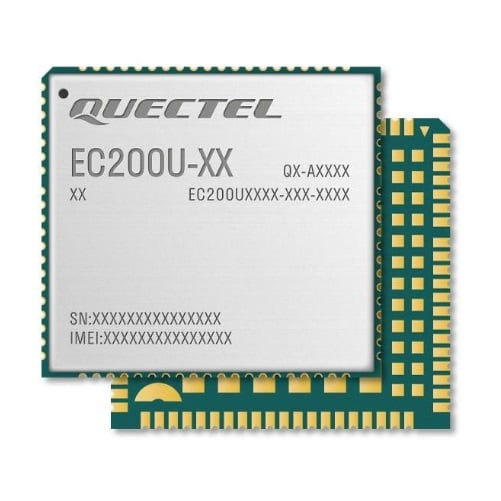

IoT/M2M-optimized LTE Cat.1 Module WITH GNSS and BLE EU Variant, Quectel
Product Details
Quectel EC200U series is a series of the latest LTE Cat 1 module optimized specially for M2M and IoT applications. It delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, the EC200U series is compatible with Quectel multi-mode LTE Standard EC25 series/EC21 series/ EC20 R2.1/ EC20-CN/EC200T series/EC200S series/EC25-G/EC21-G and UMTS/HSPA+ UC200T series, ensuring that it can easily migrate from 3G to 4G network. EC200U series also supports standard Mini PCIe packages to meet the needs of different industry applications.
| Manufacturer Part Number: | EC200UEUAA-N05-SGNSA |
| Manufacturer: | Quectel |
| Frequency: | 2.4 GHz |
| Operating Temperature: | -35°C ~ 75°C |
| Data Rate: | 5 Mb/s, 10 Mb/s |
| Supply Voltage: | 3.3 V - 4.3 V |
| Interface Type: | ADC, Audio, I2C, SPI, UART, USB 2.0 |
| Protocol - Bluetooth, BLE - 802.15.1: | Bluetooth 4.2 (BR/EDR) |
| Protocol - Cellular, NBIoT, LTE: | LTE Cat 1 |
| Protocol - GPS, GLONASS: | BeiDou, Galileo, GLONASS, GPS |
| Protocol - WiFi - 802.11: | 802.11 b |
| Moisture Sensitive: | Yes |
| Product: | 802.11 b, BeiDou, Bluetooth 4.2 (BR/EDR), Galileo, GLONASS, GPS, LTE Cat 1 |
| Product Type: | Multiprotocol Modules |
